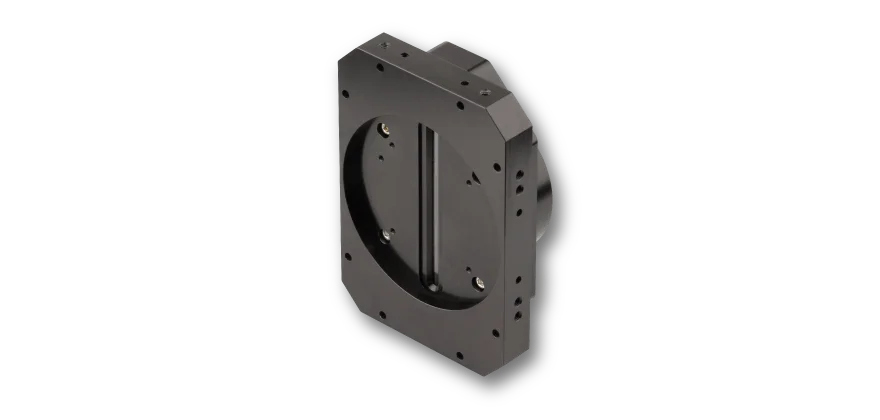

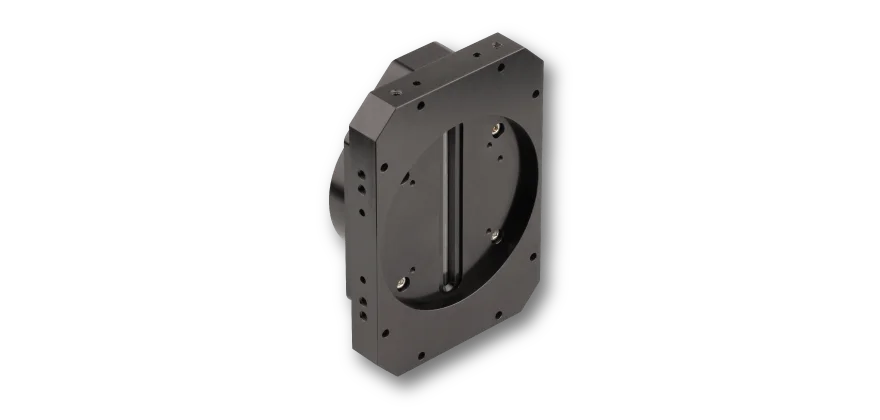

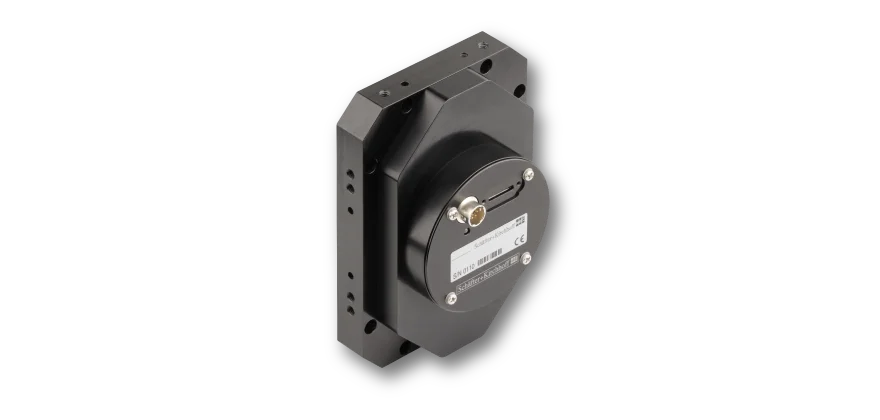

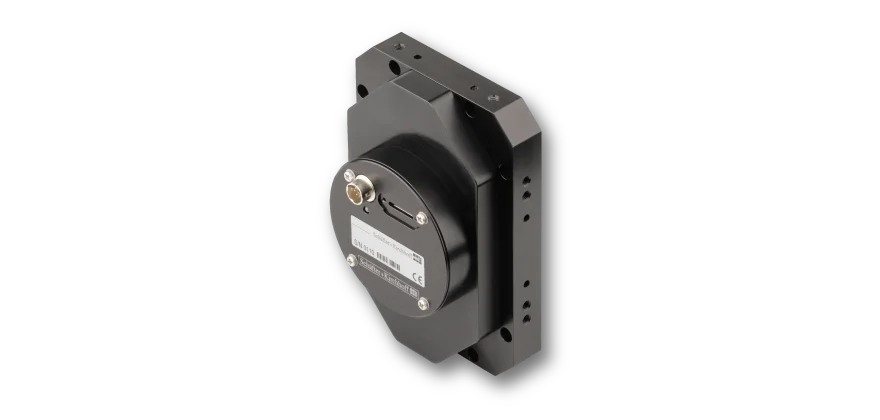

SK22800U3JRC-XC

The color SK22800U3JRC-XC line scan camera is equipped with a 3 x 7600 pixel CCD sensor. The line spacing between the pixel lines is 9.325 µm. The maximum line frequency is 6.17 kHz.

Features
All lenses show some vignetting as a function of the field angle. Hence, even with homogeneous object illumination, the signal intensity of the image decreases with increasing image height. Shading correction (or flat field compensation) is used to compensate for lens vignetting as well as for inhomogeneity in the illumination.

Synchronization
Line scan cameras have to be externally synchronized in order to obtain distortion-free images. There are two different synchronization functions that can be applied together or individually::
1. Line Synchronization triggers each individual exposure of the sensor line by line. Several operating modes are available for this: Free run, Line Start, Exposure Active.
2. Frame Synchronization is the recording of a set of lines (frame) representing a two dimensional image. The trigger is activated by an external control signal

Lenses and Adapters
The lens or tube attachment is \xD880 H8. Adapters are available for other dimensions, see Accessories.

Software and SDK
S+K provides software for Windows und Linux. SKLineScan is an operation program with a grafical user interface for system setup and simple scanning tasks. It is free for use and is applicable both for optimal adjustment of the optical system and for parameterization of the camera.
The software development kit (SDK) SK91USB3-WIN is based on C++ and includes examples for C/C++ with Visual Studio. Supported operating systems are Windows 10 (32- or 64-bit), Windows 11.
The Linux variant SK91USB3-LX requires at least kernel 3.13+.
